Chapter 5: Modern Atomic Model - Lesson 4: Periodic Trends

Atomic Size

  1. The Periodic Law Revisited
  2. Atomic Size
  3. Ionization Energy
  4. Electronegativity
Getting your Trinity Audio player ready...

Hold down the T key for 3 seconds to activate the audio accessibility mode, at which point you can click the K key to pause and resume audio. Useful for the Check Your Understanding and See Answers.

The Big Idea:

Learn how atomic size, expressed in terms of atomic radius, is a periodic property that increases down a group and decreases across a period. Explanations for the trends, based on the size of outer energy shells and the effective nuclear charge, are provided,



What is Atomic Radius?

The size of atoms is a periodic property. When progressing from element to element in order of atomic number, there is a pattern of change that repeats itself over and over again. The best means of expressing the size of atoms is by means of a measurable quantity known as tWhat is meant by atomic radius?he atomic radius.

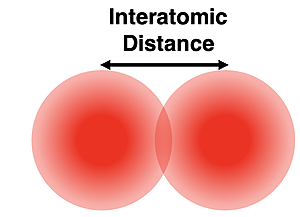

Measuring atomic radius uses an x-ray imaging technique known as x-ray diffraction. The distance is measured from the center of one atom to the center of an identical atom that is bonded to it. This is the interatomic distance. The atomic radius is one-half the interatomic distance. The atomic radius is typically expressed in the unit picometer, abbreviated pm. Atoms of noble gases do not form bonds with themselves. Empirical data for the atomic radii of the noble gas elements must be determined by other methods.




A Look at the Data - Atomic Size Trends

The plot below displays atomic radius values as a function of atomic number for the first five periods of the periodic table. Transition metals do not show any meaningful trends. They have been left out of the data set.

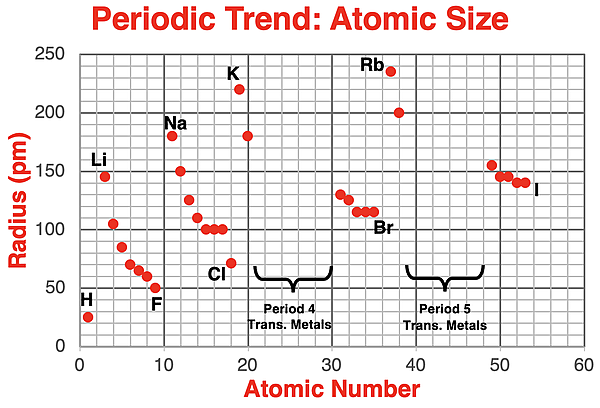

Plot of atomic radius as a function of atomic number for main group elements for the first five periods.


The alkali metals and the halogen data points have been labeled on the chart. The pattern of change or trend from Li to F (period 2), from Na to Cl (period 3), from K to Br (period 4), and from Rb to I (period 5) is clearly evident. The pattern of a decreasing atomic radius value repeats itself during each of these periods.







A Pictorial Representation of Atomic Size Trends

A more revealing way of looking at this data is by representing each element as a circle that has a radius that is proportional to the atomic radius. This is done below for main group elements in periods 1 through 6.

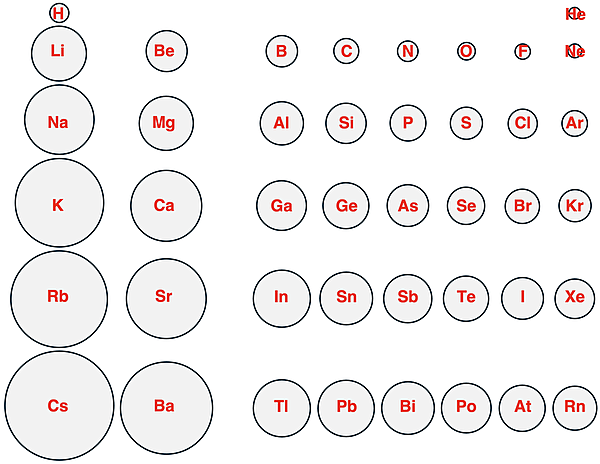

Circles of varying atomic radius for main group elements organized in the form of a periodic table to show the trends.


Each column represents a group, beginning with group 1 on the left and ending with group 18 on the right. (Transition metals in groups 3 – 12 are not included in the graphic.) Each row of the graphic represents a period, with period 1 (includes H and He) at the top and period 6 (Cs through Rn) at the bottom.





Describing the Atomic Radius Trends

Two trends can be identified in the above pictorial representation.

  1. As one proceeds from top to bottom down a column of the Periodic Table, the atomic radius increases.
  2. As one proceeds from left to right across a row of the Periodic Table, the atomic radius decreases.

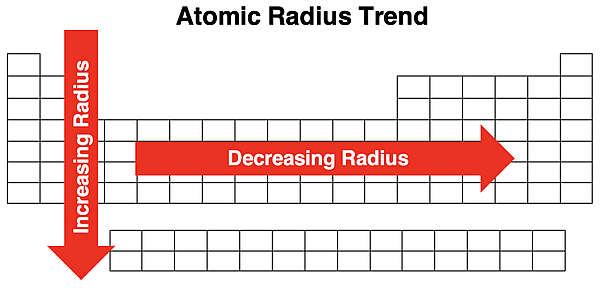

Periodic table displaying across a period and down the column trend in atomic radius.






How Atomic Structure Affects Atomic Radius

The modern model of the atom is used to explain the two trends. When progressing from atom to atom down a group of the periodic table, the number of valence electrons remains constant. But in each successive row, the valence electrons are entering orbitals of a different principal energy level (n). Orbitals with a larger n value (at the bottom of the table) are larger orbitals. Thus, it makes sense that atomic radius increases as one progresses down a group.

When progressing from element to element across a period of the periodic table, one electron and one proton are being added with each successive element. The electrons are entering into the same valence shell. But the addition of a proton causes the size of the shell to be contracted in size. The contraction is the result of an even more positively charged nucleus attracting the negatively charged electron cloud and drawing it inward. Thus, elements on the far right of a period, with a larger number of protons, are smaller than elements on the far left that have less protons.





Before You Leave - Practice and Reinforcement

Now that you've done the reading, take some time to strengthen your understanding and to put the ideas into practice. Here's some suggestions.

  • Practice. Try our Periodic Trends Concept Builder. It's great practice! The first of the three activities pertains to atomic radius.

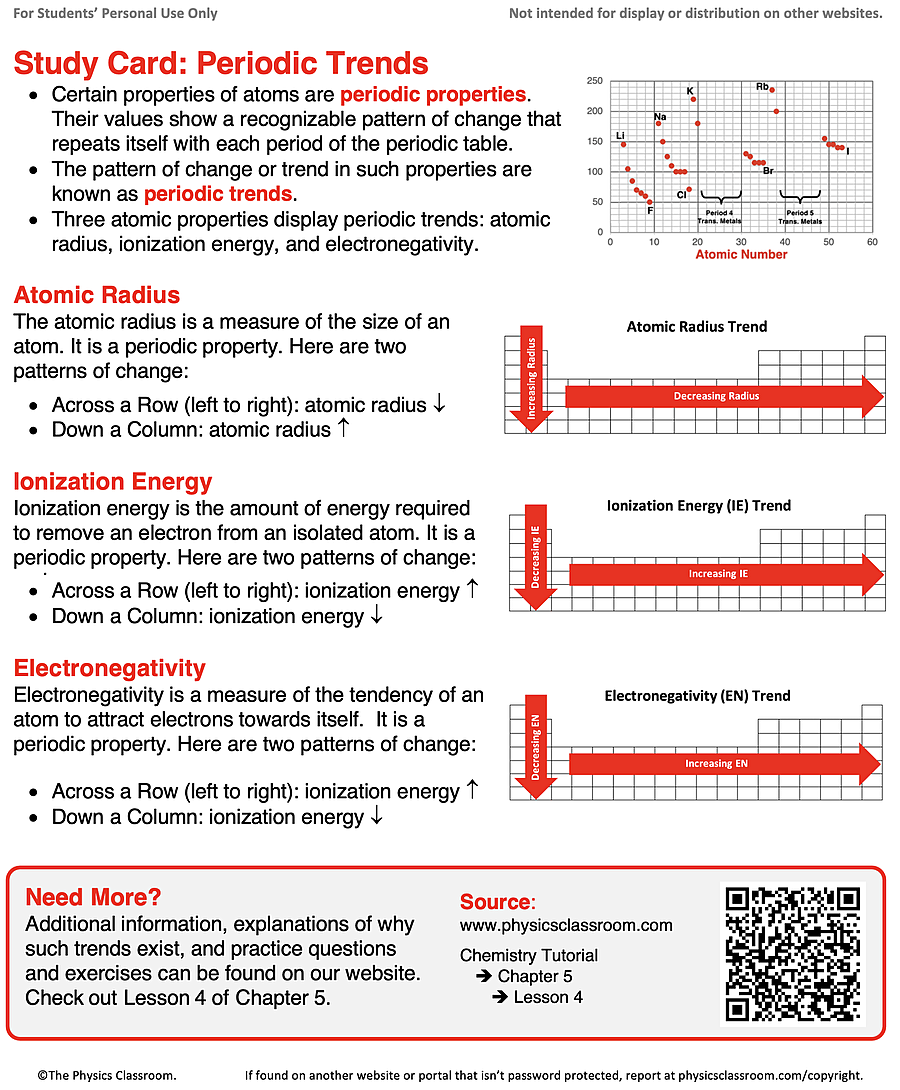

  • Download our Study Card on Periodic Trends. Save it to a safe location and use it as a review tool. This Study Card covers Lesson 4b – Lesson 4d.
  • The Check Your Understanding section below includes questions with answers and explanations. It provides a great chance to self-assess your understanding.



Check Your Understanding of Periodic Trends in Atomic Size

Use the following questions to apply your understanding of atomic radius trends. Tap the Check Answer buttons when ready.

1. Why does atomic size decrease across a period?

Check Answer



2. For each set of three elements, use the periodic trends to rank the elements in order of increasing atomic radii:
  1. 20Ca, 31Ga, 35Br
    Check Answer


  2. 5B, 31Ga, 81Tl
    Check Answer


  3. 9F, 16S, 17Cl
    Check Answer


  4. 4Be, 11Na, 12Mg
    Check Answer


  5. 8O, 38Sr, 52Te
    Check Answer


  6. 16S, 81Tl, 84Po
    Check Answer
